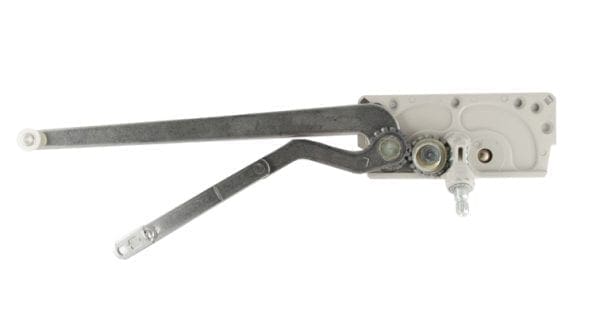

Truth EntryGard Dual Arm Operator
Patented dual arm action pushes the sash open while pulling the hinge side of the sash to the open position. When properly installed this operator results in almost effortless operation of both casement and awning-type windows of many sizes and weights.
To Order:

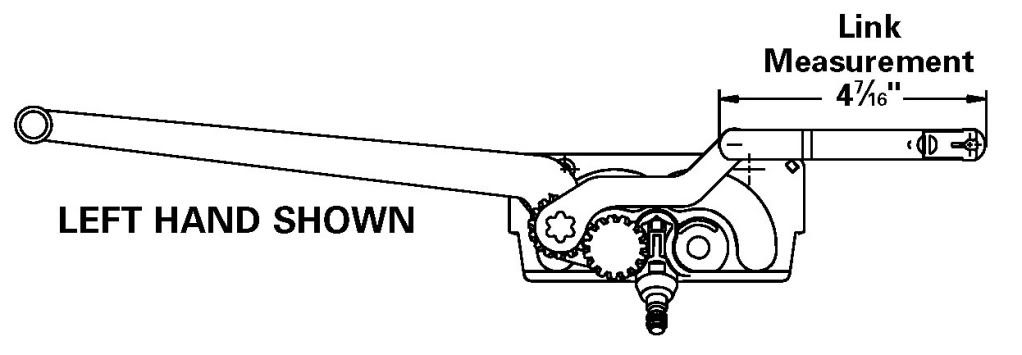

- There are three different link measurements for this operator (see diagram below). The variant shown in the diagram is the most common.
- Handing is determined by which side the window is hinged on when you are outside looking in.
- If a color is selected when ordering, it will be shipped complete with gear box cover #10341, Crank handle #11454, stud bracket and screws.
For a hinge replacement to go with this operator, order the #1475 hinge.
For a replacement track that goes on the bottom of the window, order the #30473 Track.
A stainless steel version of the 1510 variant can be ordered. This is recommended for coastal areas.
$29.00 – $84.00
Weight | 0.956 lbs |
---|---|
Link Measurement | 4 7/16”, 3 3/4", 2 7/8" |
Handing | Left, Right |
Color | Beige, Black, Bronze, Chestnut Bronze, Clay, Gold, White, Operator Only |
Stainless Steel | No, Yes |
